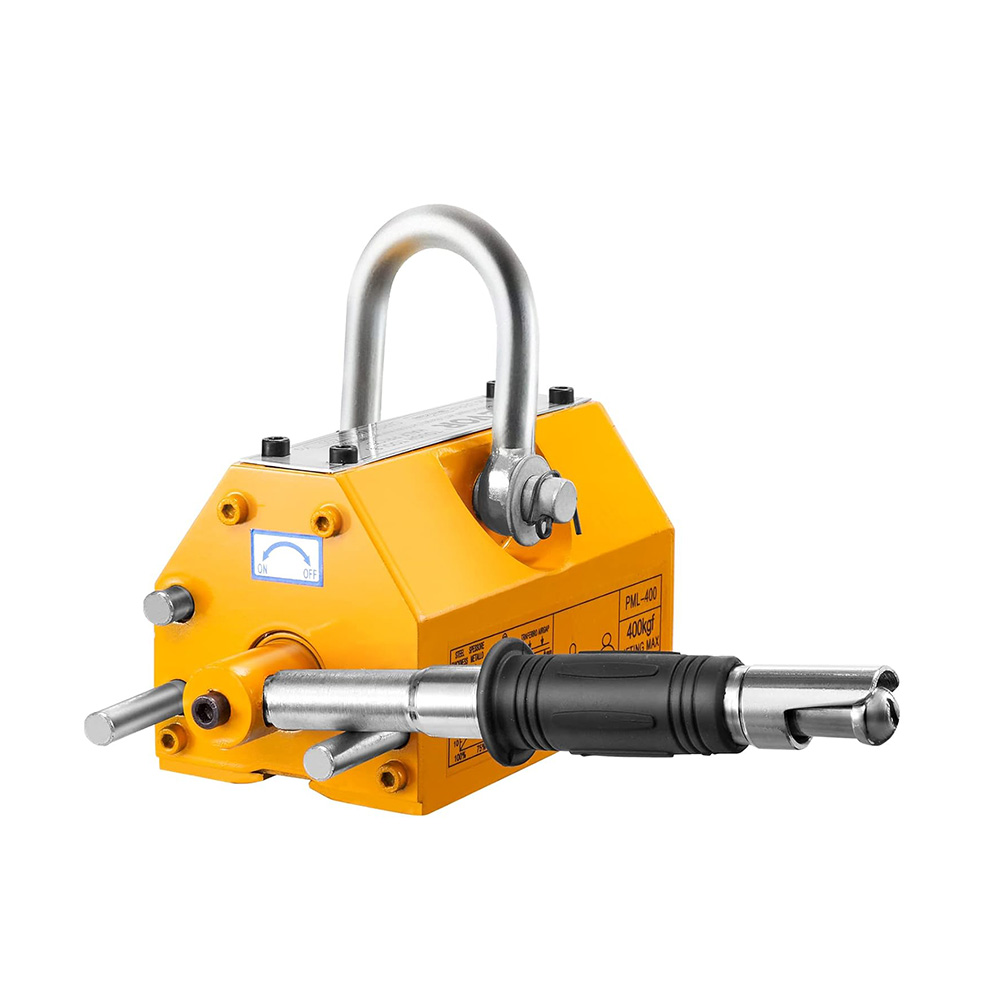

PML-400 Magnetic Lifter

400 kg Magnetic Lifting Handle - PML 400

The magnetic lifting handle, used for lifting metal sheets, can transport heavy metal materials when attached to cranes or similar devices. Known as PML-400 or PML-4 in some sources, this magnetic lifter has a mechanical lifting capacity of 400 kg, making it highly effective in areas where human power is insufficient.

How to Use PML-400 Magnetic Lifter

The PML-400 handle magnet requires no additional human effort. The lever-operated system provides permanent force without requiring electricity. The magnetic force is activated using the handle on the device. When the lever is not pulled, the device remains inactive and in the off position.

Operating Instructions

• Clean the surface of the piece to be lifted before using the device
• Position the magnetic lifter at the center of gravity of your piece
• Lower the magnetic lifter onto the piece you want to lift
• Pull the lever to activate the device
• After the magnetic force grips your piece, lift and transport the metal using a crane or similar equipment
• When your piece reaches the desired position, return the lever to the closed position

Power Efficiency Based on Material Thickness

Our magnetic lever lifters provide force according to the thickness of the metal to be lifted. You can check below how much force your PML model provides for different material thicknesses.
