Neodymium Magnetic Filter with DN50 Union - Rustproof and Leakproof
0.00 TL

With installments starting from 0.00 TL!

Stock : Sadece Teklif
Model : MGK-MF-4
Category : Manyetik Filtreler
Teklif İsteyin

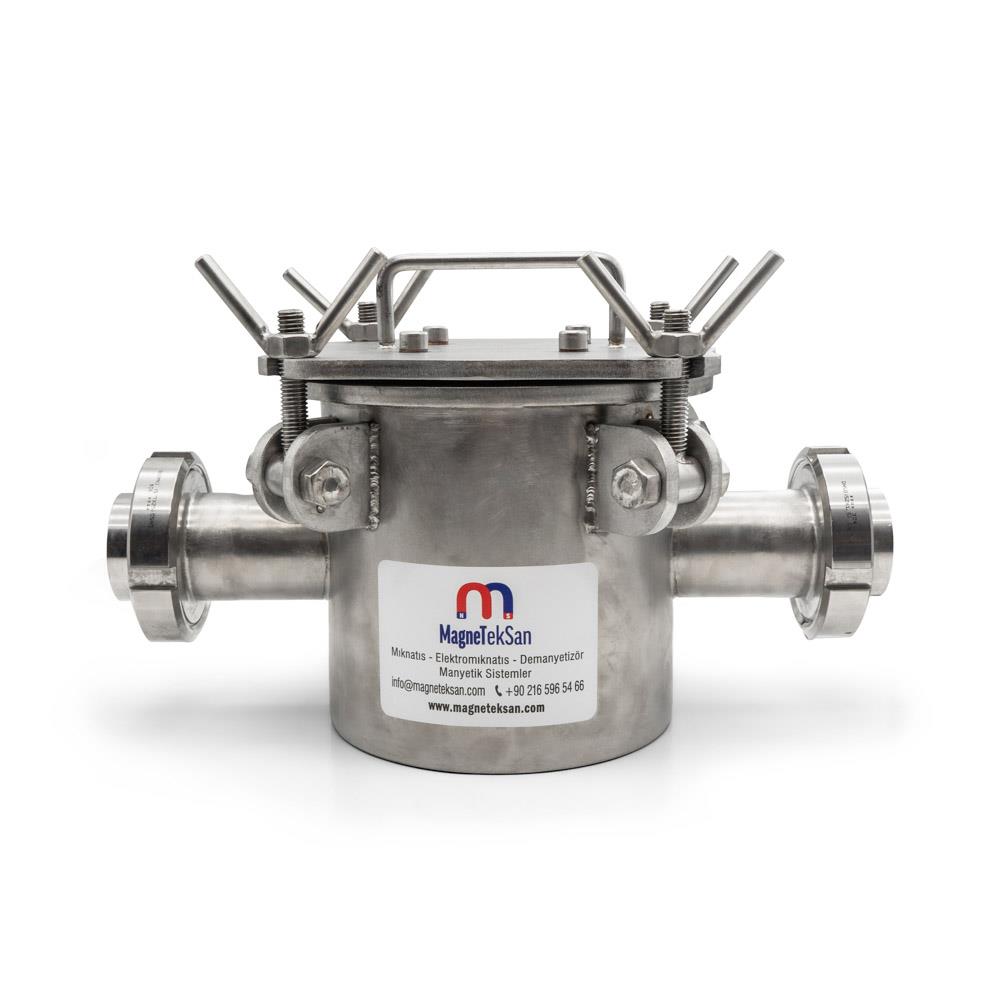

DN50 Magnetic Filter with Coupling, Neodymium Magnets

Our neodymium bar magnetic filters are manufactured in our Istanbul facility. The DN50 magnetic filter features coupled inlet and outlet connections. It operates at temperatures up to 80°C as standard, with optional high-temperature variants available up to 150°C.

This coupled magnetic filter, commonly used in food industries, is also suitable for heating and natural gas systems. Our company certifies these magnetic filters as food-grade, delivering them with appropriate food safety certifications. They are reliably used in metal separation processes for various food products.


Our neodymium magnetic filters feature high magnetic attraction power and are corrosion-resistant. They are food-certified and completely safe for your food products, making them suitable for use by all food companies.


The magnetic measurement values of our neodymium magnetic filters comply with BRC and HACCP standards. Our magnetic filters are certified by TUBITAK, and this certification is provided with the product upon purchase.


To capture even the smallest metal particles in food products, these filters are manufactured using high-powered neodymium magnets. Our neodymium magnetic filters offer five times higher gauss values compared to ferrite-ceramic magnets. All products are manufactured with corrosion resistance.

These neodymium magnetic filters are entirely our own domestic production. As manufacturers, we can produce magnetic filters in any size and gauss strength according to your requirements.

The filters can be safely used in liquid environments and operate in temperatures up to 80°C.


Technical Specifications:

Filter inlet/outlet (B1-B2): DN50

Filter outer diameter (A): 168 mm

Length/Height (C): 200 mm

Internal bar diameter: 32 mm

Number of internal bars: 4 pieces

Write a review

Specifications

Dimensions
Diameter DN 50
Length 151-200 mm
Width 151-200 mm
Connection
Connection Diameter 51-100 mm
Connection Length 15 mm
Connection Type Socket Weld
Magnet Properties
Coating None
Color Gray
Gaussian Value 10000-12000 Gaussian
Grade N35
Magnet Attraction Distance 0-5 cm
Magnet Type Neodymium (NdFeB)
Max. Operating Temperature 80°C
Shape Round
Strenght 75-100 kg
Tolerance ± 0,1 mm
Material Properties
Complete Stainless Yes
External Material Feature Steel
Sealing Yes
Exterior Material Quality 304 Quality Stainless
