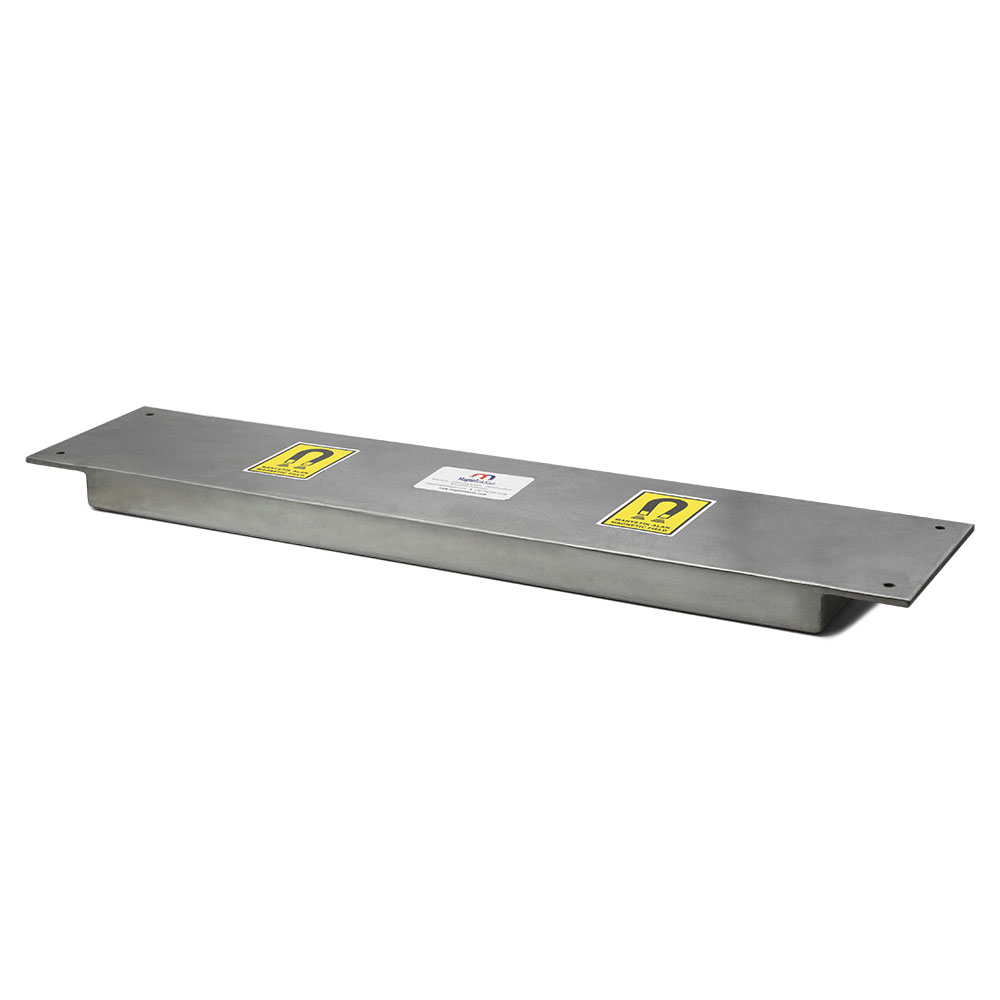

900x200x45-mm-Neodymium-Plate -Magnet
Share:
900x200x45-mm-Neodymium-Plate -Magnet
0.00 TL
With installments starting from 0.00 TL!
- Stock: Sadece Teklif
- Model: MGK-PL-28
- Category: Special Design Plate Magnets
Stock | : | Sadece Teklif |
Model | : | MGK-PL-28 |
Category | : | Special Design Plate Magnets |
Product Added to Cart
900x200x45-mm-Neodymium-Plate -Magnet
If you have questions about the product, you can contact our team before purchasing.
Product Added to Wishlist
900x200x45-mm-Neodymium-Plate -Magnet
The product has been saved to your list so you can access it later. You can turn the product into an order at any time by going to the favorites area. Have fun shopping.
Custom Size Neodymium Magnetic Plate Production
We manufacture custom magnetic plates with both male and female connection holes. Our products are food-grade and stainless steel. All our products are manufactured according to desired measurements and dimensions.
Product Features
- Manufactured by local engineers in accordance with standards and food safety requirements.
- Our products are high-gauss, powerful magnets.
- Can be easily used to separate dust particles within the system.
- Magnetic separators are produced with leak-proof design, making them suitable for wet and humid environments.
- As the surfaces of magnets that contact food are covered with stainless material, they comply with Food Standards.
Technical Specifications
- Food-grade stainless steel construction
- Customizable dimensions
- Waterproof and moisture-resistant design
- High magnetic strength
- Available with male or female connection options
- Certified for food industry applications
Specifications
Dimensions | |
Height | 45 mm |
Length | 501-1000 mm |
Width | 151-200 mm |
Connection | |
Connection Diameter | 10 mm |
Connection Type | Female |
Magnet Properties | |
Coating | Nickel (Ni) |
Gaussian Value | 4000-5000 Gaussian |
Grade | N35 |
Magnet Attraction Distance | 25-30 cm |
Magnet Type | Neodymium (NdFeB) |
Max. Operating Temperature | 80°C |
Shape | Rectangular |
Strenght | 25-50 kg |
Tolerance | ± 0,1 mm |
Material Properties | |
Coating | Paint |
Color | Silver |
Complete Stainless | No |
External Material Feature | Stainless |
Sealing | Yes |
Tolerance | ± 3 mm |
Exterior Material Quality | 304 Quality Stainless |
