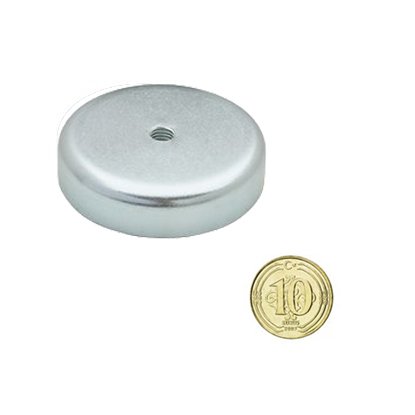

Ø60x15 mm N35 Pot Magnet with Female Bolt Hole
Ø60x15 mm N35 Pot Magnet with Female Bolt Hole
0.00 TL
With installments starting from 0.00 TL!
| Stock | : | Sadece Teklif |
| Model | : | MGKP6015 |
| Category | : | Neodyum Pot Mıknatıslar |
Ø60x15 mm Neodymium Pot Magnet Specifications - Imbus Connected
Unlike other magnets, neodymium magnets have a very high attraction power and are therefore preferred by many companies. Pot magnet types can be coated with different materials depending on the area to be used, increasing their durability. On our site, you can find various types of neodymium magnets in cube, block, disk or cylindrical sizes. These different productions make the product suitable for the area where it will be used. Product coatings include:
- Copper
- Nickel
- Gold
- Zinc
- Tin
- Silver
Please contact us for the type you want.
The pot magnets we produce do not tarnish, can be used for a long time without removing the coating and are resistant to temperatures up to 80°C.
Imbus Connected Neodymium Pot Magnet Catalog Dimensions
Please contact us for manufacturing in special sizes other than the dimensions given below. You can visit our website for other magnet magnet types.
| Model No | D (mm) | d1 (mm) | d2 (mm) | H (mm) | Watt (kg) | Weight (g) |
| MGKP165 | 16 | 3,5 | 6,5 | 5 | 4 | 6 |
| MGKP207 | 20 | 4,5 | 8 | 7 | 6 | 12 |
| MGKP258 | 25 | 5,5 | 9 | 8 | 14 | 23 |
| MGKP328 | 32 | 5,5 | 9 | 8 | 23 | 36 |
| MGKP429 | 42 | 6,5 | 11 | 9 | 32 | 73 |
| MGKP481 | 48 | 8,5 | 15 | 11,5 | 63 | 110 |
| MGKP601 | 60 | 8,5 | 15 | 15 | 95 | 260 |
| MGKP751 | 75 | 10,5 | 18 | 18 | 155 | 429 |
