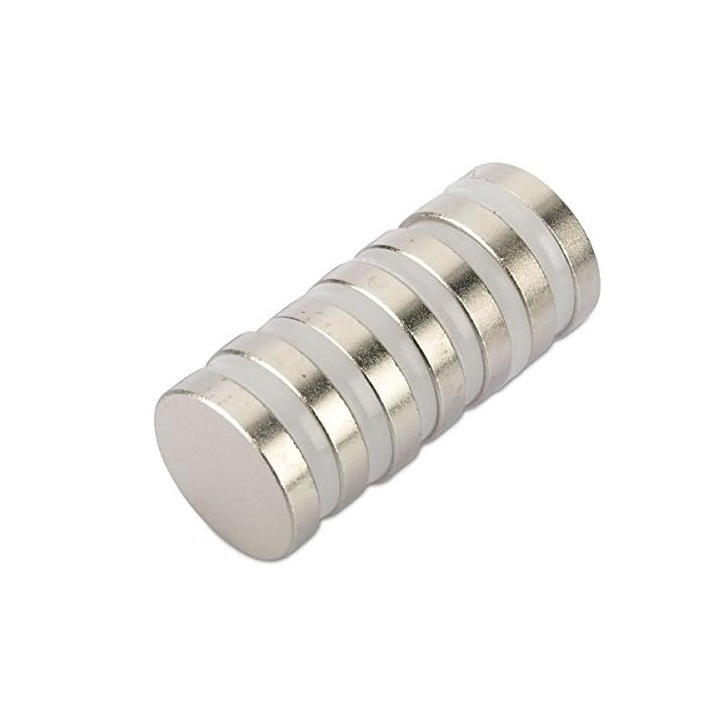

Ø25x5 mm Samarium Cobalt Magnet

25x5 mm Samarium Cobalt Magnet
Share:
Ø25x5 mm Samarium Cobalt Magnet
500.00 TL

With installments starting from 34.72 TL!

Stock : In Stock
Model : MGK-SA-6
Category : Samaryum Kobalt Mıknatıslar
Quantity Pack Price Unit Price
5 Quantity 2,250.00 TL 450.00 TL
10 Quantity 4,250.00 TL 425.00 TL
25 Quantity 10,000.01 TL 400.00 TL
50 Quantity 18,750.02 TL 375.00 TL
100 Quantity 35,000.03 TL 350.00 TL

Please contact us for larger quantities.

Add to Cart
3 days in delivery!
Delivery by 26 February 2025 Wednesday at the latest.

Diameter 25 mm SmCo Magnet (Samarium Cobalt)


The samarium-cobalt (SmCo) magnet, a type of rare earth magnet, is a powerful permanent magnet composed of two basic elements. Samarium and cobalt elements have created this permanent magnet in a very strong structure.


SmCo samarium cobalt magnets are very similar in strength to neodymium magnets. However, it can withstand higher temperature.


Features of Samarium Cobalt Magnets


  • Samarium-cobalt magnets are highly resistant to demagnetization.
  • They are resistant to high temperatures. Maximum operating temperatures are between 250 °C (523 K) and 550 °C (823 K)]; Curie temperatures are between 700 °C (973 K) and 800 °C (1,070 K).
  • They are expensive because of the elements they contain.
  • Samarium-cobalt magnets have a strong resistance to corrosion and oxidation.
  • They usually do not need to be coated
  • It can be widely used in high temperature and poor working conditions.
  • They are brittle and prone to cracking and chipping.
  • Samarium-cobalt magnets have maximum energy products (BH max) ranging from 14 megagauss-oersted (MG-Oe) to 33 MG-Oe, i.e. approx. 112 kJ/m3 to 264 kJ/m3; their theoretical limit is 34 MG-Oe, about 272 kJ/m3.




Write a review

Specifications

Dimensions
Diameter 25 mm
Height 5 mm
Magnet Properties
Coating None
Color Gray
Gaussian Value 3000-4000 Gaussian
Grade SmCo32
Magnet Attraction Distance 0-5 cm
Magnet Type Samarium Cobalt (SmCo)
Max. Operating Temperature 350°C
Shape Round
Strenght 15-25 kg
Tolerance ± 0,1 mm
