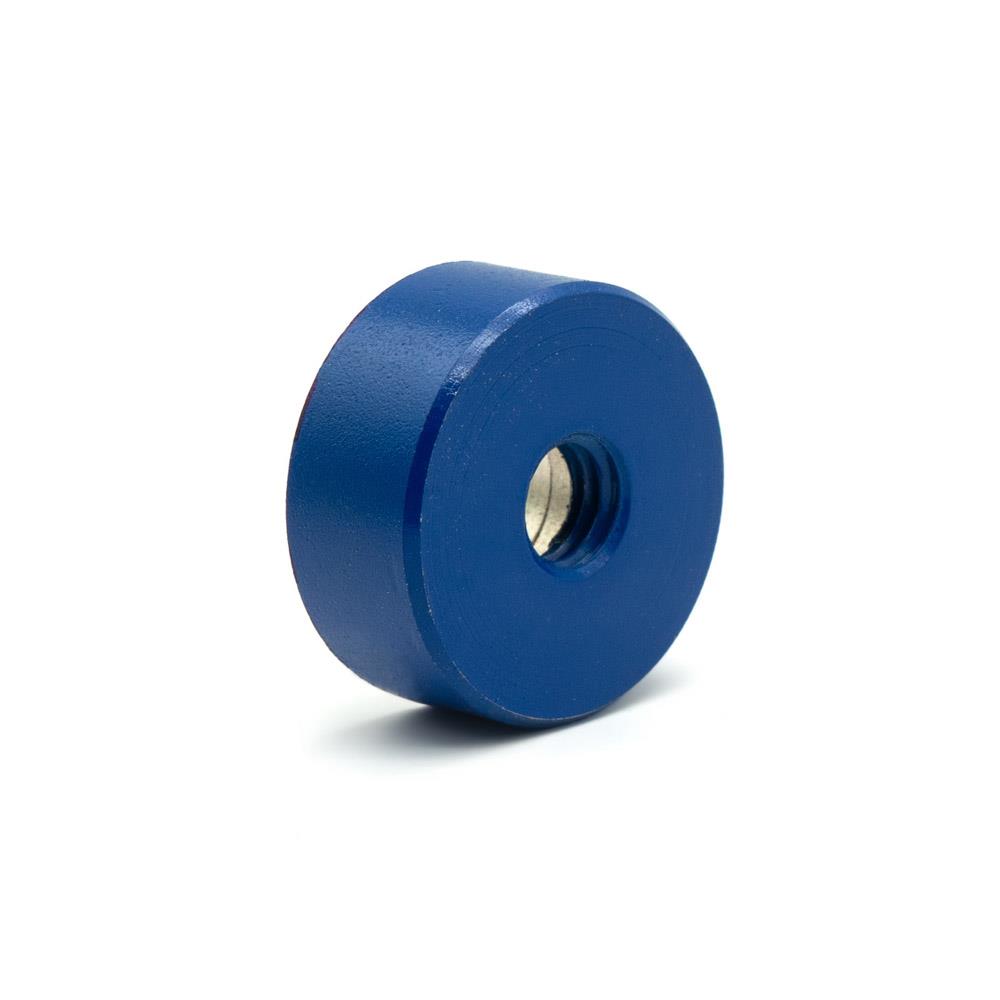

Ø25x10 mm Neodymium Pot Magnet - Female Connection

25mm Neodymium Pot Magnet with Female Thread - 15kg Pull Force

Product Description:

High-performance Ø25x10mm neodymium pot magnet with M8x4mm female thread. Features colored exterior coating and delivers approximately 15kg pull force. Engineered for long-term magnetic stability and durability.

Technical Specifications:

• Diameter: 25mm

• Height: 10mm

• Thread Size: M8x4mm

• Pull Force: 15kg

• Type: Female threaded

• Finish: Colored coating

Key Features:

• Powerful neodymium core

• Female thread connection

• Compact design

• Long-term magnetic stability

• Custom color options

• Corrosion-resistant coating

Customization Options:

• Connection types:

  - Female thread

  - Male thread

  - Handle mount

  - Hook mount

• Material finishes:

  - Painted surface

  - Stainless steel

  - Aluminum handle

• Custom dimensions available

Applications:

• Industrial mounting

• Manufacturing processes

• Assembly operations

• Holding applications

• Temporary fixturing

Manufacturing Capabilities:

• Custom specifications

• Bespoke designs

• Quality-controlled production

• Technical consultation

• Various mounting options

Performance Features:

• Strong pull force

• Consistent magnetic field

• Durable construction

• Reliable performance

• Easy installation

Note: Custom specifications and mounting options available upon request. Contact us for specific requirements and technical consultation.



Stock No.	D	H	h	M	Watt			Weight
	mm	mm	mm		Kg	N	Lbs	g
MGK-P-0	10	8	3	M4	2.May	25	6	3
MGK-P-0	13	8	3	M5	3	30	7	5
MGK-P-0	16	8	3	M6	6	60	13	8
MGK-P-6	20	10	4	M6	10	100	22	15
MGK-P-7	25	10	4	M8	15	150	33	27
MGK-P-0	32	15	5	M8	25	250	55	42
MGK-P-0	40	15	7	M8	35	350	77	80
MGK-P-0	48	15	8	M8	60	590	135	135
MGK-P-11	60	20	8	M10	100	980	220	260
MGK-P-12	70	20 Write a review Your Name Your Review Rating Continue Specifications Dimensions Diameter 25 mm Height 10 mm Inner Diameter 8 mm Connection Connection Diameter 8 mm Connection Length 4 mm Connection Type Female Magnet Properties Coating Zinc (Zn) Color Blue Gaussian Value 3000-4000 Gaussian Grade N35 Magnet Attraction Distance 5-10 cm Magnet Type Neodymium (NdFeB) Max. Operating Temperature 80°C Shape Ring (Holey) Strenght 10-15 kg Tolerance ± 0,1 mm Material Properties Coating Paint Color Blue Complete Stainless Yes External Material Feature Steel Sealing Yes Tolerance ± 0,1 mm Exterior Material Quality ST37 WhatsApp Support New Super Strong Handheld Metal Transportation Magnet - 30 kg Metal Carrying Magnet, 30 Kg Carrying Capacity A powerful magnetic lifting device that ensures the safe and easy lifting and transportation of heav.. 960.00 TL Ex Tax:800.00 TL Toptan teklif isteyin Add to Cart Ø32 mm Off Road Led Rod Magnet Neodymium LED Bar Magnetic Grid for Off-Road Vehicles - Male Connection Design A high-performance neodymium ring magnet with exceptional pulling ca.. 210.00 TL Ex Tax:175.00 TL Toptan teklif isteyin Add to Cart Ø60 mm Male Connection - Pot Magnet with Threaded Stud - 100 kg Pulling Power Pot Magnet with Male Connection - Threaded Stud - 100 kg Attractive ForceThis neodymium pot magnet with male connection can be sized according to your.. 1,294.72 TL Ex Tax:1,078.93 TL Toptan teklif isteyin Add to Cart Ø90 mm Pot Magnet with Female Hole - 200 kg Pulling Power Female Perforated Pot Magnet Neodymium 90 mm Diameter - 200 kg Attractive ForceNeodymium pot magnet with flat surface female connection has a diameter.. 28% 1,499.00 TL 2,100.00 TL Ex Tax:1,249.17 TL Toptan teklif isteyin Add to Cart Ø100 mm Pot Magnet - Neodimium - 250 kg Pull **100 mm Neodymium Ultra-Strong Pot Magnet**The world’s strongest magnet type, neodymium, is now being utilized in pot magnet production through Magne.. 16% 1,999.00 TL 2,400.00 TL Ex Tax:1,665.83 TL Toptan teklif isteyin Add to Cart
