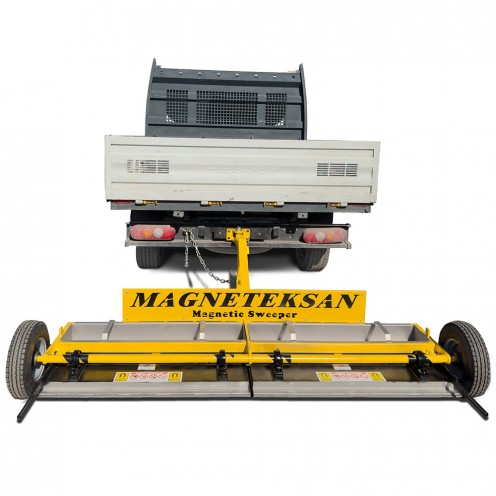

2300x200x40 mm Magnetic Sweeper












With installments starting from 0.00 TL!

2300x200x40 mm Magnetic Sweeper

2300x200x40 mm Magnetic Sweeper
Forklift magnet suitable for industry, ports, construction sites
Collects metal dust, pieces, screws, bolts from the ground. With the pistons we offer for use in this product, the metals collected from the ground are automatically released. In this way, the driver can do this operation whenever he wants. You can easily pull metal particles from the ground in an industrial environment with the forklift front magnet. We can also produce a forklift rear magnet according to your request. The magnets produced for forklifts consist of easy-release plate magnets and are domestically produced. It is used to collect nails, wires, construction iron, dust and similar ferromagnetic metals that fall on the roads where vehicles and people pass.
Areas of use: Industrial Zones, Airports, Construction Sites, Municipalities, Iron and Steel Factories, Mines It is manufactured according to the desired vehicle rear. For detailed information, you can send an e-mail to [email protected].
Specifications
Dimensions | |
Height | 40 mm |
Length | 1000 mm + |
Width | 151-200 mm |
Connection | |
Connection Diameter | 10 mm |
Connection Length | 15 mm |
Connection Type | Female |
Magnet Properties | |
Coating | Seramik |
Color | Black |
Gaussian Value | 2000-3000 Gaussian |
Grade | Y35 |
Magnet Attraction Distance | 10-15 cm |
Magnet Type | Ferrite (Oxide) |
Max. Operating Temperature | 250°C |
Shape | Rectangular |
Strenght | 50-75 kg |
Tolerance | ± 0,1 mm |
Material Properties | |
Coating | Paint |
Color | Yellow |
Complete Stainless | No |
External Material Feature | Steel |
Sealing | No |
Tolerance | ± 3 mm |
Exterior Material Quality | ST37 |
