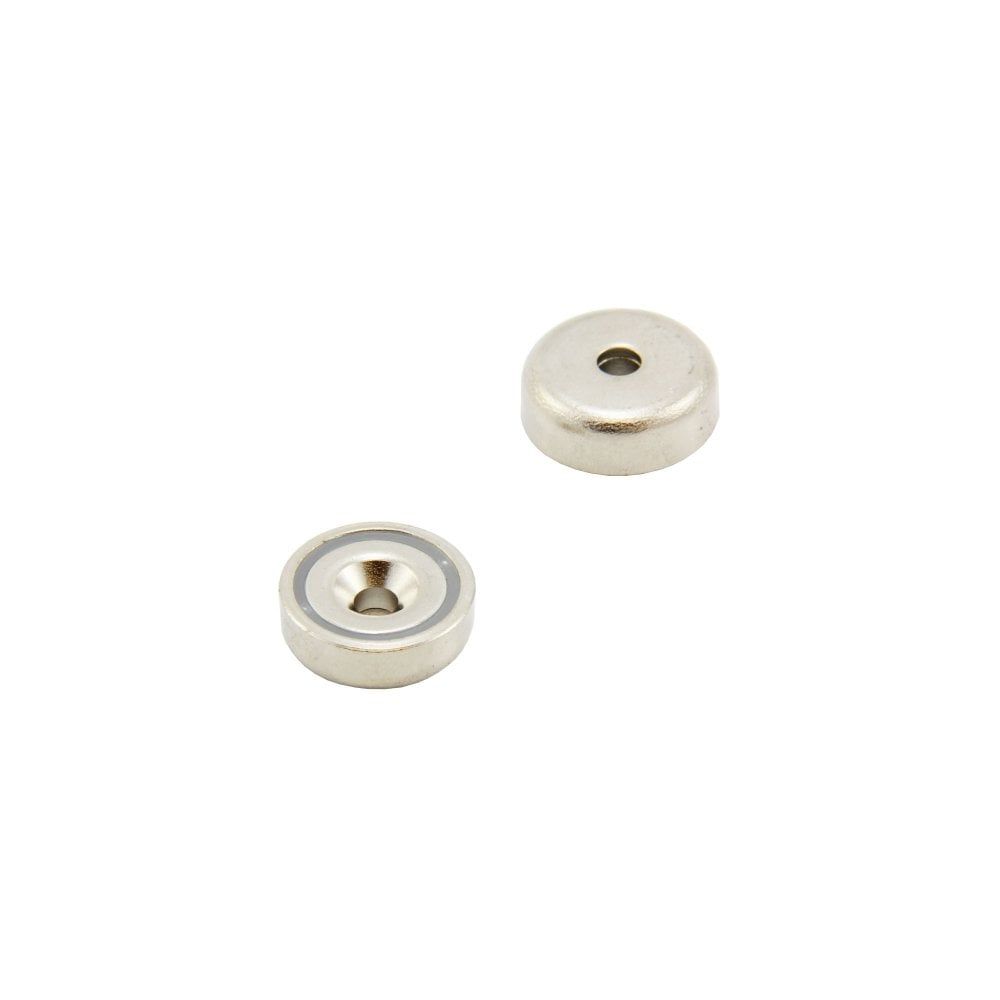

Ø20x8,6/4x7 mm Countersunk Pot Magnet

New

Ø20x8,6/4x7 mm Countersunk Pot Magnet

Based on 0 reviews. Write a review

58.00 TL

With installments starting from 4.03 TL!

Stock	:	In Stock
Model	:	MGK-P-75
Category	:	Neodyum Pot Mıknatıslar

Qty

Add to Cart

Buy Now

Add to Wish List

3 days in delivery!

Delivery by 26 February 2025 Wednesday at the latest.

Description
Reviews

Ø20x8.6/4x7 mm Countersunk Pot Magnet

The usage areas of countersunk pot magnets are quite extensive. These countersunk pot magnets, made from neodymium magnets, are more resistant to impacts thanks to the stainless metal surrounding them and have a stronger pulling force compared to standard countersunk magnets of the same size.

Easy Mounting Feature

Countersunk magnets provide ease of installation for users. Thanks to the screw hole on top, you can easily fix the magnet onto surfaces such as wood, concrete, plastic, etc.

Contact Us for More Information

For detailed information, feel free to contact us.

Specifications

Dimensions
Diameter	20 mm
Height	7 mm
Inner Diameter	8,5 mm
Connection
Connection Diameter	4 mm
Connection Type	Counterbored Hole
Magnet Properties
Coating	Nickel (Ni)
Color	Gray
Gaussian Value	500-1000 Gauss
Grade	N35
Magnet Attraction Distance	0-5 cm
Magnet Type	Neodymium (NdFeB)
Max. Operating Temperature	80°C
Shape	Havşa (delikli)
Strenght	0-1 kg
Tolerance	± 0,1 mm
Material Properties
Coating	Stainless
Color	Gray
Complete Stainless	Yes
External Material Feature	Stainless
Sealing	Yes
Tolerance	± 0,1 mm
Exterior Material Quality	304 Quality Stainless
