Ø22x10/5x6 mm Countersunk Neodymium Magnet - N35

Name: 22x10/5x6 mm Countersunk Neodymium Magnet - N35
Brand: Magneteksan
Price: 61.5 TRY
Availability: PreSale

Based on 0 reviews. Write a review

61.50 TL

With installments starting from 4.27 TL!

Stock	:	Sadece Teklif
Model	:	MGK-NEH-21
Category	:	Havşa Delikli Neodyum Mıknatıslar

Qty

Teklif İsteyin

Buy Now Extra Button

Add to Wish List

Description
Reviews

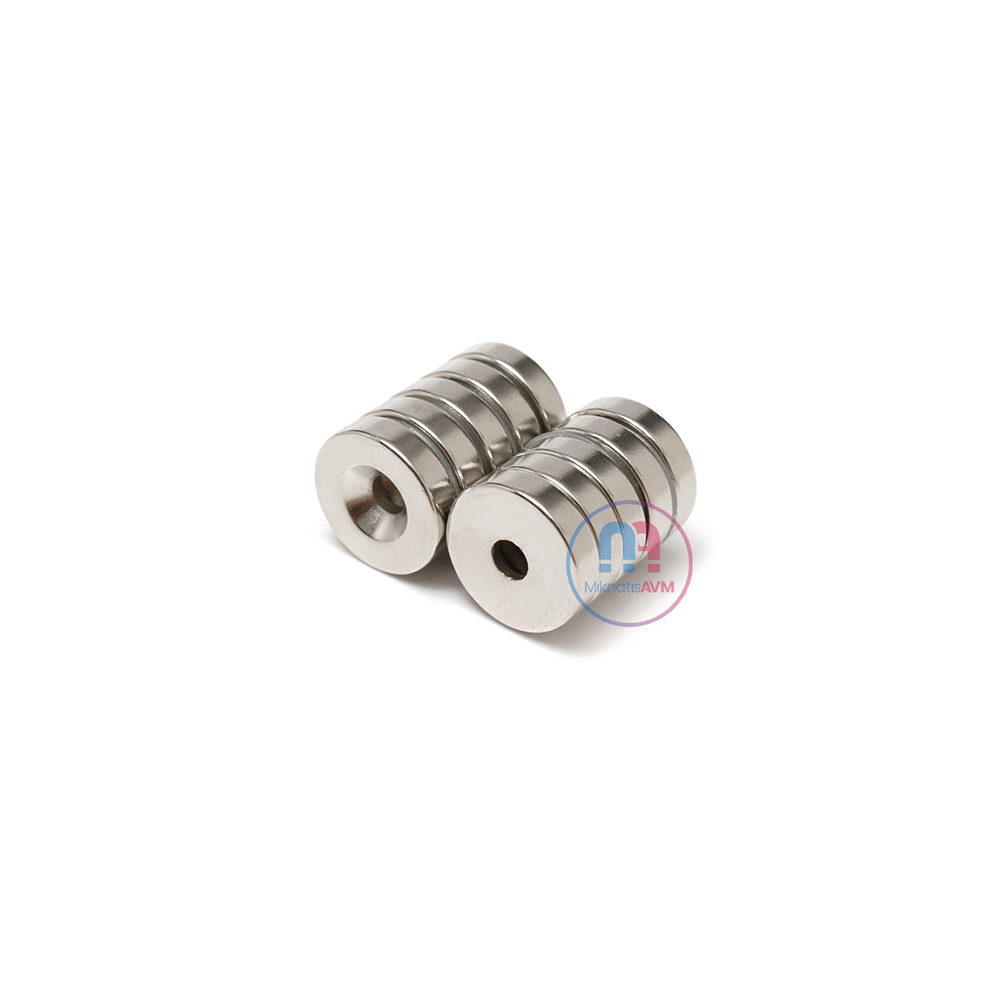

22 mm Diameter Countersunk Neodymium Magnet

This 22 mm nickel-coated neodymium magnet is a special size, designed with a countersunk hole measuring 10/5 mm. The unique countersunk design allows screws or bolts to be inserted for secure fastening. This powerful magnet enables attachment to non-metallic surfaces. Using a screw, you can mount the magnet onto wood, plastic, concrete, and similar surfaces.

Important Notice

Over-tightening the screw may cause the magnet to break. Please handle with care.

Certification and Industrial Applications

- Our magnets are Gauss-certified and can be provided upon request for an additional fee. - We offer Gauss measurement and certification services for all magnetic systems. - Magneteksan manufactures magnetic equipment and magnets for various industries, including defense, automotive, public sector, food processing, recycling, and mining.

Specifications

Dimensions
Diameter	22 mm
Height	6 mm
Inner Diameter	4 mm
Connection
Connection Diameter	10 mm
Magnet Properties
Coating	Nickel (Ni)
Color	Gray
Gaussian Value	2000-3000 Gaussian
Grade	N35
Magnet Attraction Distance	0-5 cm
Magnet Type	Neodymium (NdFeB)
Max. Operating Temperature	80°C
Shape	Havşa (delikli)
Strenght	5-10 kg
Tolerance	± 0,1 mm
